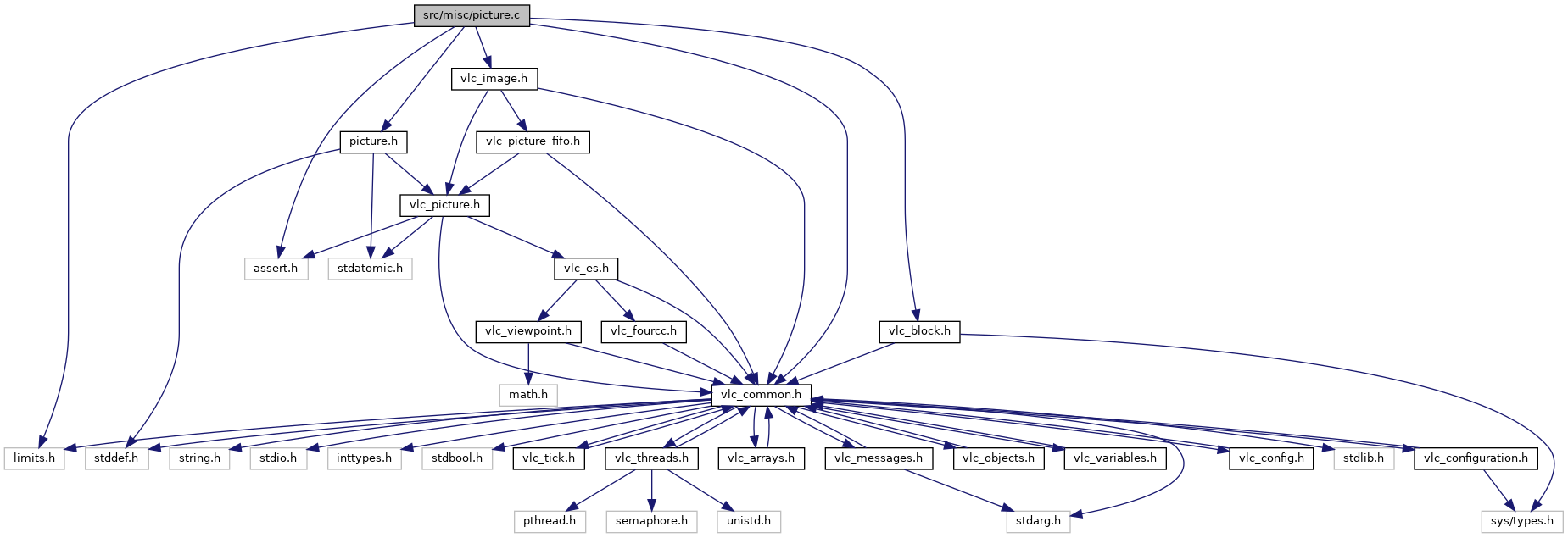

Include dependency graph for picture.c:

Macros
#define	PICTURE_SW_SIZE_MAX (UINT32_C(1) << 28) /* 256MB: 8K * 8K * 4*/

Functions
static void	PictureDestroyContext (picture_t *p_picture)

static void	picture_DestroyDummy (picture_t *p_picture)
	Destroys a picture allocated by picture_NewFromResource() but without a custom destruction callback. More...

static void	picture_DestroyFromFormat (picture_t *pic)
	Destroys a picture allocated with picture_NewFromFormat(). More...

void *	picture_Allocate (int *restrict fdp, size_t size)

void	picture_Deallocate (int fd, void *base, size_t size)

void	picture_Reset (picture_t *p_picture)
	This function will reset a picture information (properties and quantizers). More...

static int	LCM (int a, int b)

int	picture_Setup (picture_t p_picture, const video_format_t restrict fmt)

static picture_priv_t *	picture_NewPrivate (const video_format_t *restrict p_fmt, size_t extra)

picture_t *	picture_NewFromResource (const video_format_t p_fmt, const picture_resource_t p_resource)
	This function will create a new picture using the provided resource. More...

picture_t *	picture_NewFromFormat (const video_format_t *restrict fmt)

picture_t *	picture_New (vlc_fourcc_t i_chroma, int i_width, int i_height, int i_sar_num, int i_sar_den)
	This function will create a new picture. More...

void	picture_Destroy (picture_t *picture)
	Destroys a picture without references. More...

void	plane_CopyPixels (plane_t p_dst, const plane_t p_src)

void	picture_CopyProperties (picture_t p_dst, const picture_t p_src)
	This function will copy all picture dynamic properties. More...

void	picture_CopyPixels (picture_t p_dst, const picture_t p_src)
	This function will copy the picture pixels. More...

void	picture_Copy (picture_t p_dst, const picture_t p_src)
	This function will copy both picture dynamic properties and pixels. More...

static void	picture_DestroyClone (picture_t *clone)

picture_t *	picture_Clone (picture_t *picture)
	Perform a shallow picture copy. More...

int	picture_Export (vlc_object_t p_obj, block_t pp_image, video_format_t p_fmt, picture_t *p_picture, vlc_fourcc_t i_format, int i_override_width, int i_override_height, bool b_crop)
	This function will export a picture to an encoded bitstream. More...

Macro Definition Documentation

◆ PICTURE_SW_SIZE_MAX

#define PICTURE_SW_SIZE_MAX (UINT32_C(1) << 28) /* 256MB: 8K * 8K * 4*/

Referenced by picture_NewFromFormat().

Function Documentation

◆ LCM()

static int LCM	(	int	a,
		int	b
	)

static

References GCD().

Referenced by picture_Setup().

◆ picture_Allocate()

void* picture_Allocate	(	int *restrict	fdp,
		size_t	size
	)

References aligned_alloc().

Referenced by picture_NewFromFormat().

◆ picture_Clone()

picture_t* picture_Clone ( picture_t * pic )

Perform a shallow picture copy.

This function makes a shallow copy of an existing picture. The same planes and resources will be used, and the cloned picture reference count will be incremented.

Returns: A clone picture on success, NULL on error.

References picture_t::context, picture_context_t::copy, picture_t::format, plane_t::i_lines, picture_resource_t::i_lines, plane_t::i_pitch, picture_resource_t::i_pitch, picture_t::i_planes, likely, picture_t::p, picture_resource_t::p, plane_t::p_pixels, picture_resource_t::p_pixels, picture_t::p_sys, picture_resource_t::p_sys, picture_DestroyClone(), picture_Hold(), and picture_NewFromResource().

Referenced by picture_Release(), and vout_snapshot_Set().

◆ picture_Copy()

void picture_Copy	(	picture_t *	p_dst,
		const picture_t *	p_src
	)

This function will copy both picture dynamic properties and pixels.

You have to notice that sometime a simple picture_Hold may do what you want without the copy overhead. Provided for convenience.

Parameters

p_dst	pointer to the destination picture.
p_src	pointer to the source picture.

References picture_CopyPixels(), and picture_CopyProperties().

Referenced by picture_Release(), ThreadDisplayRenderPicture(), and vout_ConvertForDisplay().

◆ picture_CopyPixels()

void picture_CopyPixels	(	picture_t *	p_dst,
		const picture_t *	p_src
	)

This function will copy the picture pixels.

You can safely copy between pictures that do not have the same size, only the compatible(smaller) part will be copied.

References picture_t::context, picture_context_t::copy, picture_t::i_planes, picture_t::p, and plane_CopyPixels().

Referenced by picture_Copy(), and picture_Release().

◆ picture_CopyProperties()

void picture_CopyProperties	(	picture_t *	p_dst,
		const picture_t *	p_src
	)

This function will copy all picture dynamic properties.

References picture_t::b_force, picture_t::b_progressive, picture_t::b_still, picture_t::b_top_field_first, picture_t::date, and picture_t::i_nb_fields.

Referenced by picture_Copy(), and picture_Release().

◆ picture_Deallocate()

void picture_Deallocate	(	int	fd,
		void *	base,
		size_t	size
	)

Referenced by picture_DestroyFromFormat().

◆ picture_Destroy()

void picture_Destroy ( picture_t * picture )

Destroys a picture without references.

This function destroys a picture with zero references left. Never call this function directly. Use picture_Release() instead.

References container_of, picture_priv_t::destroy, picture_priv_t::gc, PictureDestroyContext(), and picture_t::refs.

Referenced by picture_Release().

◆ picture_DestroyClone()

static void picture_DestroyClone ( picture_t * clone )

static

References picture_Release().

Referenced by picture_Clone().

◆ picture_DestroyDummy()

static void picture_DestroyDummy ( picture_t * p_picture )

static

Destroys a picture allocated by picture_NewFromResource() but without a custom destruction callback.

Referenced by picture_NewFromResource().

◆ picture_DestroyFromFormat()

static void picture_DestroyFromFormat ( picture_t * pic )

static

Destroys a picture allocated with picture_NewFromFormat().

References picture_buffer_t::base, picture_buffer_t::fd, picture_t::p_sys, picture_Deallocate(), and picture_buffer_t::size.

Referenced by picture_NewFromFormat().

◆ picture_Export()

int picture_Export	(	vlc_object_t *	p_obj,
		block_t **	pp_image,
		video_format_t *	p_fmt,
		picture_t *	p_picture,
		vlc_fourcc_t	i_format,
		int	i_override_width,
		int	i_override_height,
		bool	b_crop
	)

This function will export a picture to an encoded bitstream.

pp_image will contain the encoded bitstream in psz_format format.

p_fmt can be NULL otherwise it will be set with the format used for the picture before encoding.

i_override_width/height allow to override the width and/or the height of the picture to be encoded:

if strictly lower than 0, the original dimension will be used.
if equal to 0, it will be deduced from the other dimension which must be different to 0.
if strictly higher than 0, it will either override the dimension if b_crop is false, or crop the picture to the provided size if b_crop is true. If at most one of them is > 0 then the picture aspect ratio will be kept.

References picture_t::date, picture_t::format, video_format_t::i_chroma, block_t::i_dts, video_format_t::i_height, block_t::i_pts, video_format_t::i_sar_den, video_format_t::i_sar_num, video_format_t::i_visible_height, video_format_t::i_visible_width, video_format_t::i_width, video_format_t::i_x_offset, video_format_t::i_y_offset, image_HandlerCreate, image_HandlerDelete(), image_Write, VLC_EGENERIC, VLC_ENOMEM, and VLC_SUCCESS.

Referenced by picture_Release(), and vout_GetSnapshot().

◆ picture_New()

picture_t* picture_New	(	vlc_fourcc_t	i_chroma,
		int	i_width,
		int	i_height,
		int	i_sar_num,
		int	i_sar_den
	)

This function will create a new picture.

The picture created will implement a default release management compatible with picture_Hold and picture_Release. This default management will release p_sys, gc.p_sys fields if non NULL.

References picture_NewFromFormat(), video_format_Init(), and video_format_Setup().
