Video rendering, output and window management. More...

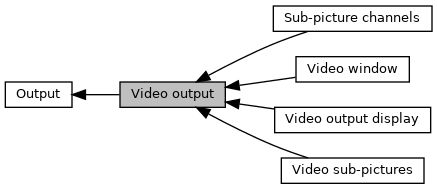

Collaboration diagram for Video output:

Modules
	Sub-picture channels

	Video sub-pictures
	Subpictures are pictures that should be displayed on top of the video, like subtitles and OSD.

	Video output display
	Video output display: output buffers and rendering.

	Video window
	Window management.

Files
file	vlc_vout.h
	Video output thread interface.

Data Structures
struct	vout_thread_t
	Video output thread descriptor. More...

Macros
#define	VOUT_ALIGN_LEFT 0x0001

#define	VOUT_ALIGN_RIGHT 0x0002

#define	VOUT_ALIGN_HMASK 0x0003

#define	VOUT_ALIGN_TOP 0x0004

#define	VOUT_ALIGN_BOTTOM 0x0008

#define	VOUT_ALIGN_VMASK 0x000C

#define	VOUT_SPU_CHANNEL_INVALID (-1) /* Always fails in comparison */

#define	VOUT_SPU_CHANNEL_OSD 0 /* OSD channel is automatically cleared */

#define	VOUT_SPU_CHANNEL_OSD_HSLIDER 1

#define	VOUT_SPU_CHANNEL_OSD_VSLIDER 2

#define	VOUT_SPU_CHANNEL_OSD_COUNT 3

#define	vout_FlushAll(vout) vout_Flush( vout, VLC_TICK_INVALID )
	Empty all the pending pictures in the vout. More...

Typedefs
typedef struct vout_thread_sys_t	vout_thread_sys_t
	Video output thread private structure. More...

Enumerations
enum	vlc_vout_order { VLC_VOUT_ORDER_NONE, VLC_VOUT_ORDER_PRIMARY, VLC_VOUT_ORDER_SECONDARY }
	vout or spu_channel order More...

Functions
void	vout_Close (vout_thread_t *vout)
	Destroys a vout. More...

int	vout_GetSnapshot (vout_thread_t p_vout, block_t pp_image, picture_t pp_picture, video_format_t p_fmt, const char *psz_format, vlc_tick_t i_timeout)
	This function will handle a snapshot request. More...

picture_t *	vout_GetPicture (vout_thread_t *)
	Allocates a video output picture buffer. More...

void	vout_PutPicture (vout_thread_t , picture_t )
	It gives to the vout a picture to be displayed. More...

void	vout_PutSubpicture (vout_thread_t , subpicture_t )

ssize_t	vout_RegisterSubpictureChannel (vout_thread_t *)

void	vout_UnregisterSubpictureChannel (vout_thread_t *, size_t)

void	vout_FlushSubpictureChannel (vout_thread_t *, size_t)

void	vout_Flush (vout_thread_t *p_vout, vlc_tick_t i_date)
	This function will ensure that all ready/displayed pictures have at most the provided date. More...

Detailed Description

Video rendering, output and window management.

This module describes the programming interface for video output threads. It includes functions allowing to open a new thread, send pictures to a thread, and destroy a previously opened video output thread.

Macro Definition Documentation

◆ VOUT_ALIGN_BOTTOM

#define VOUT_ALIGN_BOTTOM 0x0008

Referenced by VoutGetDisplayCfg().

◆ VOUT_ALIGN_HMASK

#define VOUT_ALIGN_HMASK 0x0003

◆ VOUT_ALIGN_LEFT

#define VOUT_ALIGN_LEFT 0x0001

Referenced by VoutGetDisplayCfg().

◆ VOUT_ALIGN_RIGHT

#define VOUT_ALIGN_RIGHT 0x0002

Referenced by VoutGetDisplayCfg().

◆ VOUT_ALIGN_TOP

#define VOUT_ALIGN_TOP 0x0004

Referenced by VoutGetDisplayCfg().

◆ VOUT_ALIGN_VMASK

#define VOUT_ALIGN_VMASK 0x000C

◆ vout_FlushAll

#define vout_FlushAll ( vout ) vout_Flush( vout, VLC_TICK_INVALID )

Empty all the pending pictures in the vout.

Referenced by DecoderThread_Flush(), and ModuleThread_PlayVideo().

◆ VOUT_SPU_CHANNEL_INVALID

#define VOUT_SPU_CHANNEL_INVALID (-1) /* Always fails in comparison */

Referenced by CreateDecoder(), DecoderThread_ChangeDelay(), DecoderThread_ChangeRate(), DecoderThread_Flush(), DeleteDecoder(), ModuleThread_NewSpuBuffer(), spu_GetFreeChannelId(), spu_RegisterChannelInternal(), vout_RegisterSubpictureChannel(), and vout_RegisterSubpictureChannelInternal().

◆ VOUT_SPU_CHANNEL_OSD

#define VOUT_SPU_CHANNEL_OSD 0 /* OSD channel is automatically cleared */

Referenced by spu_PutSubpicture(), vlc_player_osd_HoldAll(), vlc_player_osd_Message(), vout_DisplayTitle(), vout_OSDEpg(), VoutOsdSnapshot(), vouts_osd_Icon(), and vouts_osd_Message().

◆ VOUT_SPU_CHANNEL_OSD_COUNT

#define VOUT_SPU_CHANNEL_OSD_COUNT 3

Referenced by spu_Create(), spu_GetFreeChannelId(), and spu_SelectSubpictures().

◆ VOUT_SPU_CHANNEL_OSD_HSLIDER

#define VOUT_SPU_CHANNEL_OSD_HSLIDER 1

Referenced by vlc_player_osd_HoldAll(), and vouts_osd_Slider().

◆ VOUT_SPU_CHANNEL_OSD_VSLIDER

#define VOUT_SPU_CHANNEL_OSD_VSLIDER 2

Referenced by vouts_osd_Slider().

Typedef Documentation

◆ vout_thread_sys_t

typedef struct vout_thread_sys_t vout_thread_sys_t

Video output thread private structure.

Enumeration Type Documentation

◆ vlc_vout_order

enum vlc_vout_order

vout or spu_channel order

Enumerator

VLC_VOUT_ORDER_NONE

VLC_VOUT_ORDER_PRIMARY

There is only one primary vout/spu_channel For vouts: this is the first vout, probably embedded in the UI.

For spu channels: main and first SPU channel.

VLC_VOUT_ORDER_SECONDARY

There can be several secondary vouts or spu_channels For vouts: a secondary vout using its own window.

For spu channels: a secondary spu channel that is placed in function of the primary one. See "secondary-sub-margin" and "secondary-sub-alignment".

Function Documentation

◆ vout_Close()

void vout_Close ( vout_thread_t * vout )

Destroys a vout.

This function closes and releases a vout created by vout_Create().

Parameters

vout	the vout to close

This function closes and releases a vout created by vout_Create().

Parameters

p_vout the vout to close

References vout_thread_sys_t::control, vout_thread_sys_t::display, vout_thread_sys_t::dummy, vout_thread_t::p, vout_thread_sys_t::render, vout_thread_sys_t::snapshot, vout_thread_sys_t::spu, spu_Destroy(), VLC_OBJECT, vout_chrono_Clean(), vout_control_Dead(), vout_IntfDeinit(), vout_Release(), vout_snapshot_End(), and vout_Stop().

Referenced by aout_filter_GetVout(), DestroyVout(), and input_resource_PutVoutLocked().

◆ vout_Flush()

void vout_Flush	(	vout_thread_t *	p_vout,
		vlc_tick_t	i_date
	)

This function will ensure that all ready/displayed pictures have at most the provided date.

References vout_thread_sys_t::control, vout_thread_sys_t::display, vout_thread_sys_t::dummy, vout_thread_t::p, vout_control_Hold(), vout_control_Release(), and vout_FlushUnlocked().

Referenced by ModuleThread_PlayVideo().

◆ vout_FlushSubpictureChannel()

void vout_FlushSubpictureChannel	(	vout_thread_t *	,
		size_t
	)

References vout_thread_sys_t::dummy, vout_thread_t::p, vout_thread_sys_t::spu, and spu_ClearChannel().

Referenced by DecoderThread_Flush(), and vlc_player_osd_HoldAll().

◆ vout_GetPicture()

picture_t* vout_GetPicture ( vout_thread_t * vout )

Allocates a video output picture buffer.

Either vout_PutPicture() or picture_Release() must be used to return the buffer to the video output free buffer pool.

You may use picture_Hold() (paired with picture_Release()) to keep a read-only reference.

References vout_thread_sys_t::display_pool, vout_thread_sys_t::dummy, picture_t::format, likely, vout_thread_sys_t::original, vout_thread_t::p, picture_pool_Wait(), picture_Reset(), and video_format_CopyCropAr().

◆ vout_GetSnapshot()

int vout_GetSnapshot	(	vout_thread_t *	p_vout,
		block_t **	pp_image,
		picture_t **	pp_picture,
		video_format_t *	p_fmt,
		const char *	psz_format,
		vlc_tick_t	i_timeout
	)
