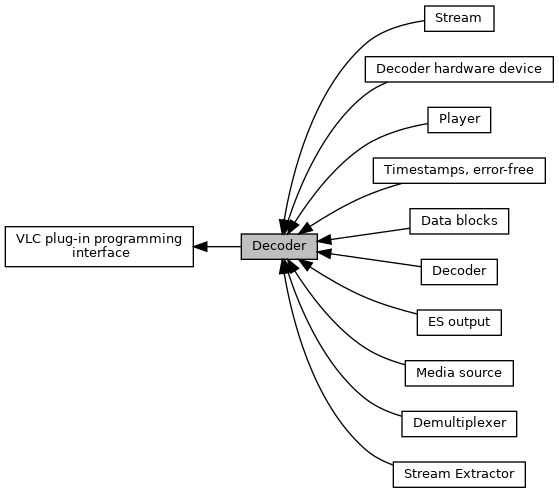

Collaboration diagram for Decoder:

Modules
	Data blocks
	Blocks of binary data.

	Decoder
	Audio, video and text decoders.

	Decoder hardware device

	Demultiplexer
	Demultiplexers (file format parsers)

	ES output
	Elementary streams output.

	Media source

	Player
	VLC Player API.

	Stream
	Buffered input byte streams.

	Stream Extractor
	If a stream can be viewed as a directory, such as when opening a compressed archive, a stream-extractor is used to get access to the entities inside said stream.

	Timestamps, error-free
	These functions support generating timestamps without long term rounding errors due to sample rate conversions.

Files
file	vlc_input.h
	Input thread interface.

Data Structures
struct	seekpoint_t

struct	input_title_t

struct	input_attachment_t

Macros
#define	INPUT_TITLE_MENU 0x01 /* Menu title */

#define	INPUT_TITLE_INTERACTIVE 0x02 /* Interactive title. Playback position has no meaning. */

#define	INPUT_RATE_MIN 0.03125f
	Input rate. More...

#define	INPUT_RATE_MAX 31.25f
	Maximal rate value. More...

Typedefs
typedef struct input_resource_t	input_resource_t
	This defines an opaque input resource handler. More...

typedef struct input_resource_t	input_resource_t

typedef struct input_title_t	input_title_t

Functions
decoder_t *	input_DecoderCreate (vlc_object_t , const es_format_t , input_resource_t *)
	Spawn a decoder thread outside of the input thread. More...

void	input_DecoderDelete (decoder_t *)
	Kills a decoder thread and waits until it's finished. More...

void	input_DecoderDecode (decoder_t , block_t , bool b_do_pace)
	Put a block_t in the decoder's fifo. More...

void	input_DecoderDrain (decoder_t *)
	Signals that there are no further blocks to decode, and requests that the decoder drain all pending buffers. More...

void	input_DecoderFlush (decoder_t *)
	Requests that the decoder immediately discard all pending buffers. More...

int	input_DecoderSetSpuHighlight (decoder_t , const vlc_spu_highlight_t )

input_resource_t *	input_resource_New (vlc_object_t *)
	It creates an empty input resource handler. More...

void	input_resource_Release (input_resource_t *)
	It releases an input resource. More...

audio_output_t *	input_resource_HoldAout (input_resource_t *)

audio_output_t *	input_resource_GetAout (input_resource_t *)
	This function creates or recycles an audio output. More...

void	input_resource_PutAout (input_resource_t , audio_output_t )
	This function retains or destroys an audio output. More...

static seekpoint_t *	vlc_seekpoint_New (void)

static void	vlc_seekpoint_Delete (seekpoint_t *point)

static seekpoint_t *	vlc_seekpoint_Duplicate (const seekpoint_t *src)

static input_title_t *	vlc_input_title_New (void)

static void	vlc_input_title_Delete (input_title_t *t)

static input_title_t *	vlc_input_title_Duplicate (const input_title_t *t)

static void	vlc_input_attachment_Delete (input_attachment_t *a)

static input_attachment_t *	vlc_input_attachment_New (const char psz_name, const char psz_mime, const char psz_description, const void p_data, size_t i_data)

static input_attachment_t *	vlc_input_attachment_Duplicate (const input_attachment_t *a)

Detailed Description

Decoder.

Input thread.

Macro Definition Documentation

◆ INPUT_RATE_MAX

#define INPUT_RATE_MAX 31.25f

Maximal rate value.

Referenced by Control().

◆ INPUT_RATE_MIN

#define INPUT_RATE_MIN 0.03125f

Input rate.

It is an float used by the variable "rate" in the range [INPUT_RATE_MIN, INPUT_RATE_MAX] the default value being 1.f. It represents the ratio of playback speed to nominal speed (bigger is faster). Minimal rate value

Referenced by Control().

◆ INPUT_TITLE_INTERACTIVE

#define INPUT_TITLE_INTERACTIVE 0x02 /* Interactive title. Playback position has no meaning. */

◆ INPUT_TITLE_MENU

#define INPUT_TITLE_MENU 0x01 /* Menu title */

Typedef Documentation

◆ input_resource_t [1/2]

typedef struct input_resource_t input_resource_t

This defines an opaque input resource handler.

◆ input_resource_t [2/2]

typedef struct input_resource_t input_resource_t

◆ input_title_t

typedef struct input_title_t input_title_t

Function Documentation

◆ input_DecoderCreate()

decoder_t* input_DecoderCreate	(	vlc_object_t *	,
		const es_format_t *	,
		input_resource_t *
	)

Spawn a decoder thread outside of the input thread.

References decoder_New().

◆ input_DecoderDecode()

void input_DecoderDecode	(	decoder_t *	p_dec,
		block_t *	p_block,
		bool	b_do_pace
	)

Put a block_t in the decoder's fifo.

Thread-safe w.r.t. the decoder. May be a cancellation point.

Parameters

p_dec	the decoder object
p_block	the data block

References decoder_owner::b_waiting, block_ChainRelease(), BLOCK_FLAG_DISCONTINUITY, dec_get_owner(), block_t::i_flags, msg_Warn, decoder_owner::p_fifo, vlc_fifo_DequeueAllUnlocked(), vlc_fifo_GetBytes(), vlc_fifo_GetCount(), vlc_fifo_Lock(), vlc_fifo_QueueUnlocked(), vlc_fifo_Unlock(), vlc_fifo_WaitCond(), and decoder_owner::wait_fifo.

Referenced by EsOutSend().

◆ input_DecoderDelete()

void input_DecoderDelete ( decoder_t * p_dec )

Kills a decoder thread and waits until it's finished.

Parameters

p_input	the input thread
p_es	the es descriptor

Returns: nothing

References decoder_owner::b_supported, decoder_owner::b_waiting, decoder_owner::cc, dec_get_owner(), DeleteDecoder(), decoder_owner::flushing, decoder_t::fmt_in, es_format_t::i_cat, input_DecoderSetCcState(), decoder_owner::lock, MAX_CC_DECODERS, decoder_owner::out_pool, decoder_owner::p_fifo, decoder_owner::p_vout, picture_pool_Cancel(), decoder_owner::thread, VIDEO_ES, vlc_cancel(), VLC_CODEC_CEA608, vlc_cond_signal(), vlc_fifo_Lock(), vlc_fifo_Unlock(), vlc_join(), vlc_mutex_lock(), vlc_mutex_unlock(), decoder_owner::vout_thread_started, and decoder_owner::wait_request.

Referenced by EsOutDestroyDecoder(), EsOutSetRecord(), EsOutTerminate(), and input_DecoderSetCcState().

◆ input_DecoderDrain()

void input_DecoderDrain ( decoder_t * p_dec )

Signals that there are no further blocks to decode, and requests that the decoder drain all pending buffers.

This is used to ensure that all intermediate buffers empty and no samples get lost at the end of the stream.

Note: The function does not actually wait for draining. It just signals that draining should be performed once the decoder has emptied FIFO.

References decoder_owner::b_draining, dec_get_owner(), decoder_owner::p_fifo, vlc_fifo_Lock(), vlc_fifo_Signal(), and vlc_fifo_Unlock().

Referenced by EsOutDrainCCChannels(), EsOutDrainDecoder(), and EsOutVaControlLocked().

◆ input_DecoderFlush()

void input_DecoderFlush ( decoder_t * p_dec )

Requests that the decoder immediately discard all pending buffers.

This is useful when seeking or when deselecting a stream.

References block_ChainRelease(), dec_get_owner(), decoder_owner::flushing, decoder_owner::fmt, decoder_owner::frames_countdown, es_format_t::i_cat, decoder_owner::p_fifo, decoder_owner::paused, SPU_ES, VIDEO_ES, vlc_fifo_DequeueAllUnlocked(), vlc_fifo_Lock(), vlc_fifo_Signal(), and vlc_fifo_Unlock().

Referenced by EsOutChangePosition().

◆ input_DecoderSetSpuHighlight()

int input_DecoderSetSpuHighlight	(	decoder_t *	,
		const vlc_spu_highlight_t *
	)

References dec_get_owner(), decoder_t::fmt_in, es_format_t::i_cat, decoder_owner::lock, decoder_owner::p_sout_input, decoder_owner::p_vout, SOUT_INPUT_SET_SPU_HIGHLIGHT, sout_InputControl(), SPU_ES, VLC_EGENERIC, vlc_mutex_lock(), vlc_mutex_unlock(), VLC_SUCCESS, and vout_SetSpuHighlight().

Referenced by EsOutVaControlLocked().

◆ input_resource_GetAout()

audio_output_t* input_resource_GetAout ( input_resource_t * )

This function creates or recycles an audio output.

References aout_New, input_resource_t::b_aout_busy, input_resource_t::lock_hold, msg_Dbg, input_resource_t::p_aout, input_resource_t::p_parent, vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by ModuleThread_UpdateAudioFormat(), and vlc_player_New().

◆ input_resource_HoldAout()

audio_output_t* input_resource_HoldAout ( input_resource_t * )

Returns: the current audio output if any. Use aout_Release() to drop the reference.

References aout_Hold(), input_resource_t::lock_hold, input_resource_t::p_aout, vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by ControlNav(), ViewpointApply(), and vlc_player_aout_Hold().

◆ input_resource_New()

input_resource_t* input_resource_New ( vlc_object_t * )

It creates an empty input resource handler.

The given object MUST stay alive as long as the input_resource_t is not deleted.

References input_resource_t::lock, input_resource_t::lock_hold, input_resource_t::p_parent, input_resource_t::p_vout_dummy, input_resource_t::rc, vlc_atomic_rc_init(), vlc_mutex_init(), and vout_CreateDummy().

Referenced by Create(), and vlc_player_New().

◆ input_resource_PutAout()

void input_resource_PutAout	(	input_resource_t *	,
		audio_output_t *
	)

This function retains or destroys an audio output.

References aout_Destroy(), input_resource_t::b_aout_busy, input_resource_t::lock_hold, msg_Dbg, input_resource_t::p_aout, input_resource_t::p_parent, vlc_mutex_lock(), and vlc_mutex_unlock().

Referenced by DecoderThread_Reload(), DeleteDecoder(), ModuleThread_UpdateAudioFormat(), and vlc_player_New().

◆ input_resource_Release()

void input_resource_Release ( input_resource_t * )

It releases an input resource.

References aout_Destroy(), DestroySout(), DestroyVout(), input_resource_t::lock, input_resource_t::lock_hold, input_resource_t::p_aout, input_resource_t::p_vout_dummy, input_resource_t::rc, vlc_atomic_rc_dec(), vlc_mutex_destroy(), and vout_Release().

Referenced by Destroy(), End(), Init(), vlc_player_Delete(), and vlc_player_New().

◆ vlc_input_attachment_Delete()

static void vlc_input_attachment_Delete ( input_attachment_t * a )

inlinestatic

References input_attachment_t::p_data, input_attachment_t::psz_description, input_attachment_t::psz_mime, and input_attachment_t::psz_name.

Referenced by accessNewAttachment(), AppendAttachment(), End(), input_ExtractAttachmentAndCacheArt(), InputUpdateMeta(), LoadSlaves(), stream_AttachmentDelete(), and vlc_input_attachment_New().

◆ vlc_input_attachment_Duplicate()

static input_attachment_t* vlc_input_attachment_Duplicate ( const input_attachment_t * a )

inlinestatic

References input_attachment_t::i_data, input_attachment_t::p_data, input_attachment_t::psz_description, input_attachment_t::psz_mime, input_attachment_t::psz_name, and vlc_input_attachment_New().

Referenced by input_GetAttachment(), and input_GetAttachments().

◆ vlc_input_attachment_New()

static input_attachment_t* vlc_input_attachment_New	(	const char *	psz_name,
		const char *	psz_mime,
		const char *	psz_description,
		const void *	p_data,
		size_t	i_data
	)
